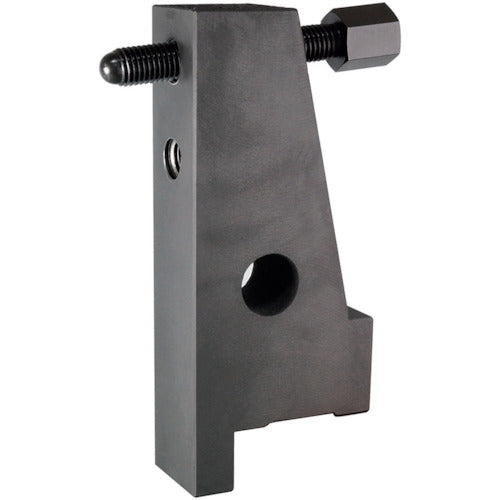

NEW STRONG Level Adjustment Jig, Side Clamp for Large Machines, for T-Slot Width 24, SDCCH-24200, 1 pc

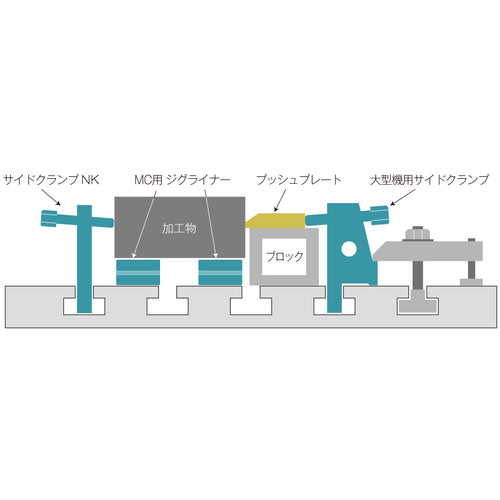

Catalog number: SDCCH-24200 Features: ● Can be inserted into the T-slot of the machine table for positioning, parallel alignment, clamping, etc. ● Tilted 5° lower than the clamping direction to prevent the workpiece from floating up. Applications: ● For positioning and parallel alignment from the side of the workpiece. Specifications: ● Width (mm): 49 ● Depth (mm): 99 ● Height (mm): 230 ● Angle: 5° ● Screw position from the bottom (mm): 131・176 ● Height from table surface when installed (mm): 200 ● Bolt diameter (mm): M18 ● Compatible T-slot width (mm): 24 ● Bolt diameter: M18 ● Compatible T-slot dimensions (mm): 24 Material/Finish: ● Body: Cast iron (FC300) ● Clamp bolt: Steel (S45C) Set contents/Accessories: ● Clamp bolt (CBA-18120) x 1
