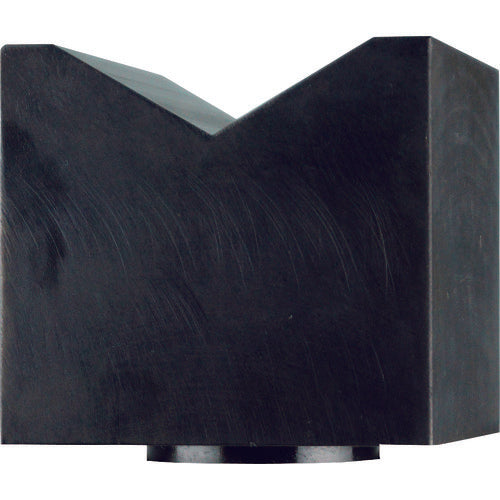

NEW STRONG Work Support Height 72.8 Outer Diameter 80 Square Angle 120° WS-80V 1 pc

Catalog number: WS-80V Features: ●The built-in bearing allows for easier height adjustment while the workpiece is still in the receiving position. ●Compatible with machining and milling machines from Φ6 to Φ100. Applications: ●Ideal for preventing chattering that occurs during machining and milling of round objects. Specifications: ●Height (mm): 72.8 ●Total height (mm): 72.8 ●Width (mm): 80 ●Depth (mm): 80 ●Tilt (degrees): 120 ●φ6 and up Material/Finish: ●Steel (S45C) ●Processing: Hardened Set contents/Accessories: ●Single item ●1 connecting fitting (SST-8B) Caution: ●When using, fix the workpiece to prevent it from falling off or the holder from falling over. ●Use with a load capacity of 2t or less. ●However, since the V-groove receives the workpiece at a linear contact, there is a possibility that streaks, dents, etc. may occur on this product and the workpiece. ●Do not use when rotating the workpiece.
