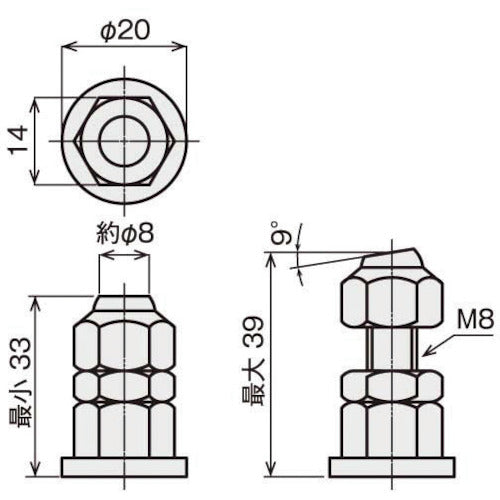

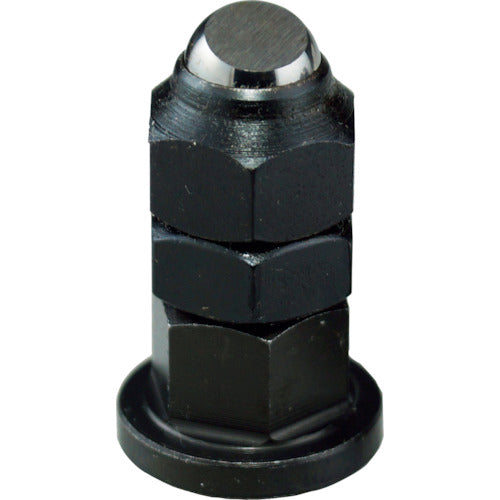

Catalogue number: S-50SS-F Features: ●Ideal for preventing vibration in a space-saving manner. ●Flat type, so it is less likely to scratch the workpiece. Specifications: ●Height (mm): 33-39 ●Face diameter (mm): 8 ●Thread diameter (mm): 8 ●Seat diameter (mm): φ20 ●Seat diameter: Φ20 ●Hexagonal width: 14 ●Tip diameter: Φ8 ●Tip inclination angle: 9 ●Thread diameter M8 ●Tip shape: Flat ●Total length (mm): 39 ●Designed to be even lower than a mini jack Material/Finish: ●Body: Steel (S45C) ●Steel ball: Steel (SUJ2)
