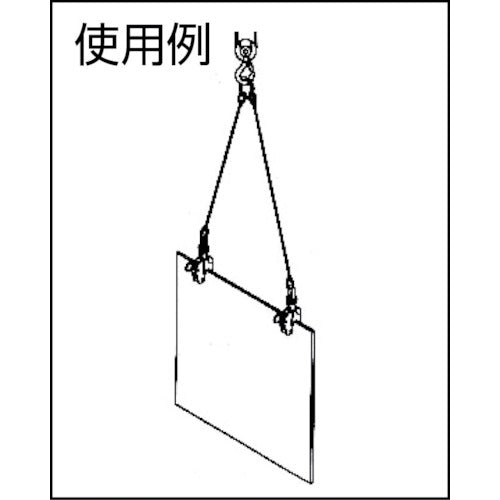

Catalog number: A2099 Features: ●The clamping force increases as the lifting load increases. ●By manually locking the clamp, a constant initial load is always applied, and the clamp will not come off the workpiece even when the load becomes zero. ●The cam is equipped with a knurled surface as standard, which makes scratches less noticeable. Applications: ●Vertical lifting of steel, structural steel, etc. Specifications: ●Basic load capacity (t): 0.5 ●Clamping range (mm): 0-20 ●Dimensions (mm) D: 40 ●Dimensions (mm) H: 236 ●Dimensions (mm) H2: 52 ●Dimensions (mm) L: 123 ●Manual locking type ●For two-point lifting Caution: ●Always use with two or more points of lifting.
