Netsuren V-25-N type 1 TON vertical lifting clamp A2030 1 unit

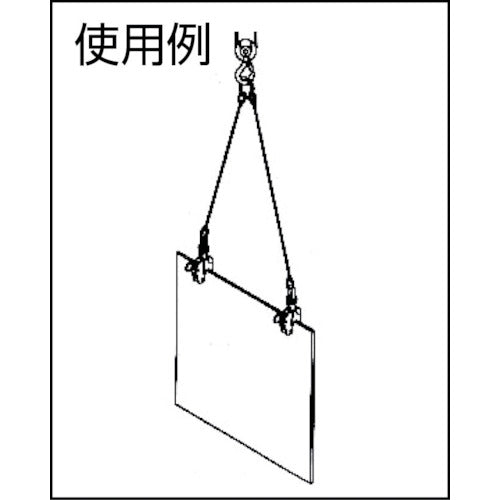

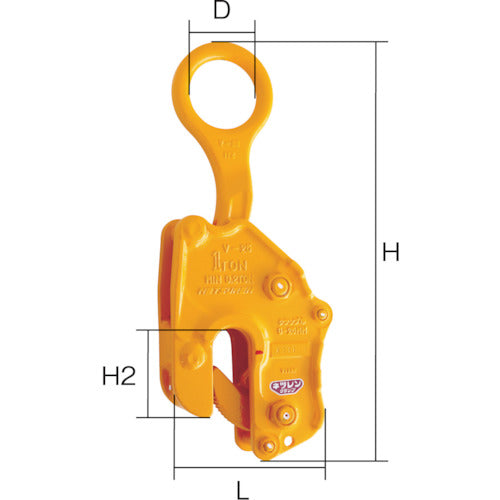

Catalog number: A2030 Features: ●The clamping force increases as the lifting load increases. ●The cam can be closed or locked in the open position by one-touch operation of "pushing and pulling" the suspension ring. ●The compression coil spring always applies a constant initial load, so the clamp will not come off the workpiece even if the load becomes zero. ●The cam can be held in the open position, so clamping operation is easy. Applications: ●Vertical lifting of steel, structural steel, etc. Specifications: ●Basic load capacity (t): 1 ●Clamping range (mm): 0-25 ●Dimensions (mm) D: 60 ●Dimensions (mm) H: 353 ●Dimensions (mm) H2: 72 ●Dimensions (mm) L: 140 ●Height (mm): 353 ●Width (mm): 140 ●One-touch safety lock type ●For two-point lifting Caution: ●Always use with two or more points of lifting.
