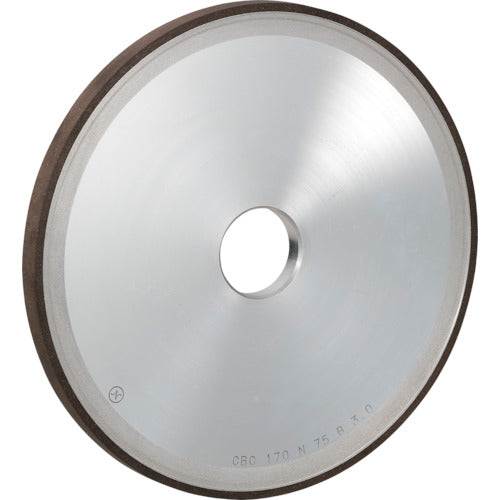

Noritake Mold Master CBN CBC170 180X13X31.75 1A1DPROM18030 1 sheet

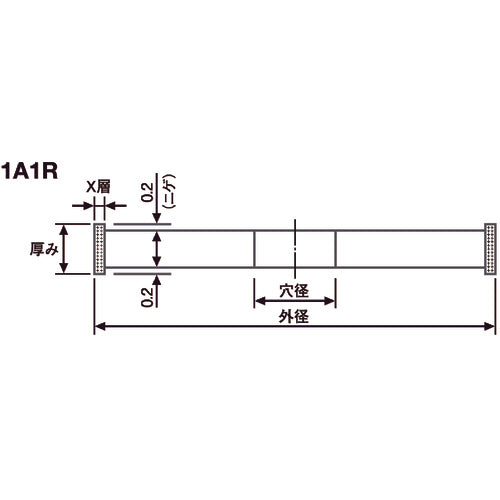

Catalog number: 1A1DPROM18030 Features: ●CBN resin bond wheel for surface grinding and cylindrical grinding. ●High grain retention provides stable sharpness. ●High elasticity bond reduces grain sinking and provides excellent sharpness. ●Angle-focused specifications are also available. Applications: ●For grinding hardened high-hardness materials such as SKD and SKH, and hardened steel. Specifications: ●Grain size (#): 170 ●Abrasive: CBC ●Outer diameter (mm): 180 ●Thickness (mm): 13 ●Hole diameter (mm): 31.75 ●Wheel peripheral speed (m/s): 50 ●Made to order ●For grinding machines ●IDAS: 1A1R ●Concentration: 75 ●Binding material: B ●X layer (mm): 3 Caution: ●Diamond tools are safe tools if used correctly. However, incorrect use or careless handling of the machine can lead to damage to the diamond tool. ●Please read the instruction manual before use, and for safety reasons, always attach the machine cover when using the machine, and wear a helmet, protective glasses, and safety shoes when working. Wear a mask if dust is generated.
