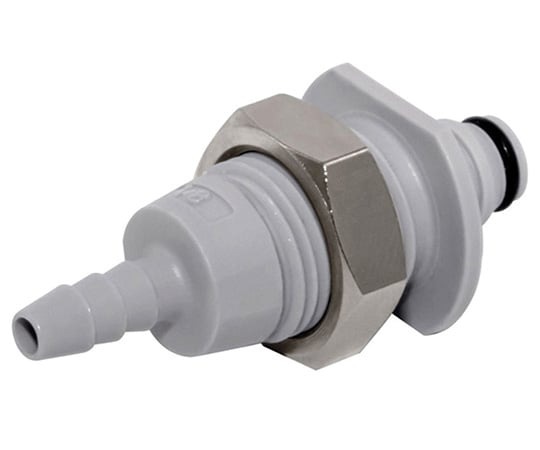

Non-spill coupling insert (panel mount type) 3.2mm NS1D420212 1 piece

It is a non-spill type that prevents liquid from dripping when removed. There is also very little air getting into the flow path. Specifications: Insert (panel mount type) Suitable tube size inner diameter: 3.2mm (1/8 cm) Material: Body and valve: Glass fiber reinforced PP, PEEK, PP, Push button: PEEK, Spring: SUS316, O-ring: EPDM (ethylene propylene rubber) Operating temperature range: 0 to 49°C Operating pressure: Vacuum to 0.1MPa Panel mount: Applicable thickness of panel mount type: Approx. 1.3 to 7.3 mm, Panel hole diameter: Approx. Φ12.7 mm
