アズワン
Non-freon multi-thermo LCM250AH 1 piece
Non-freon multi-thermo LCM250AH 1 piece
Regular price
¥393,800
Regular price
Sale price
¥393,800
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

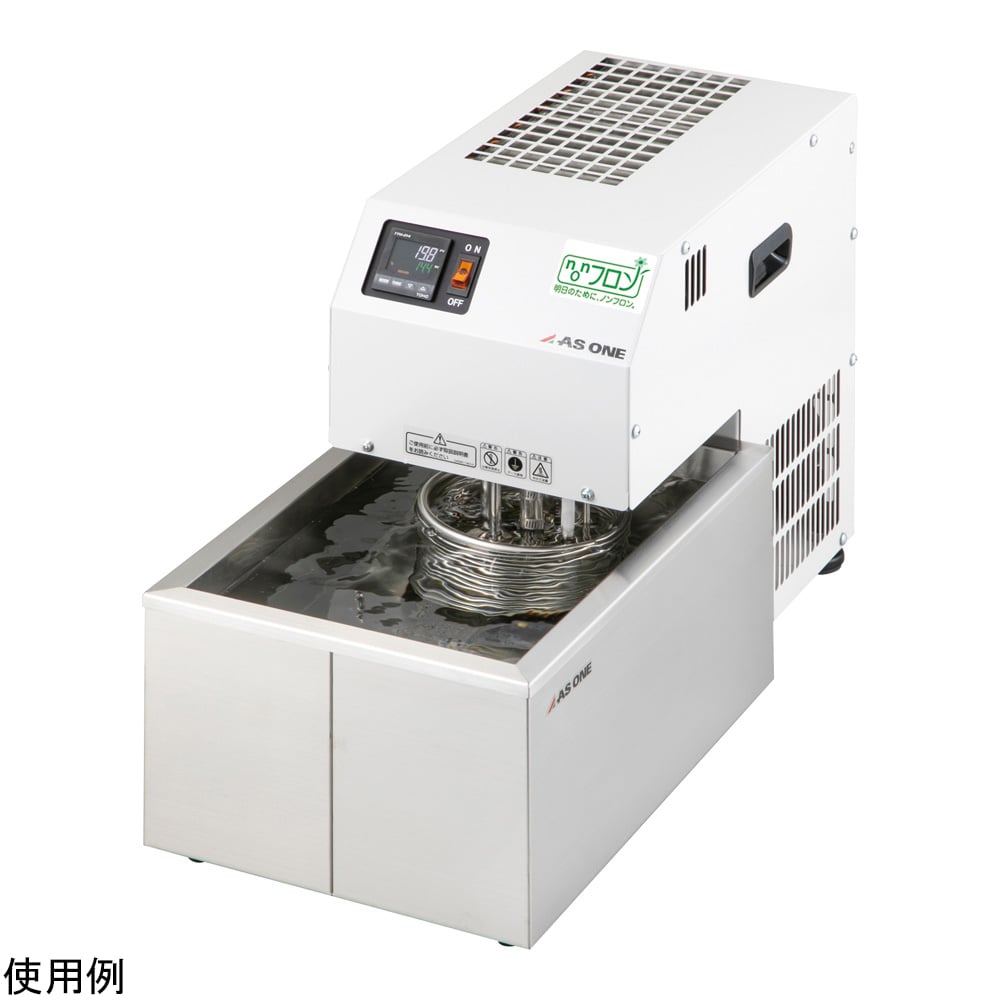

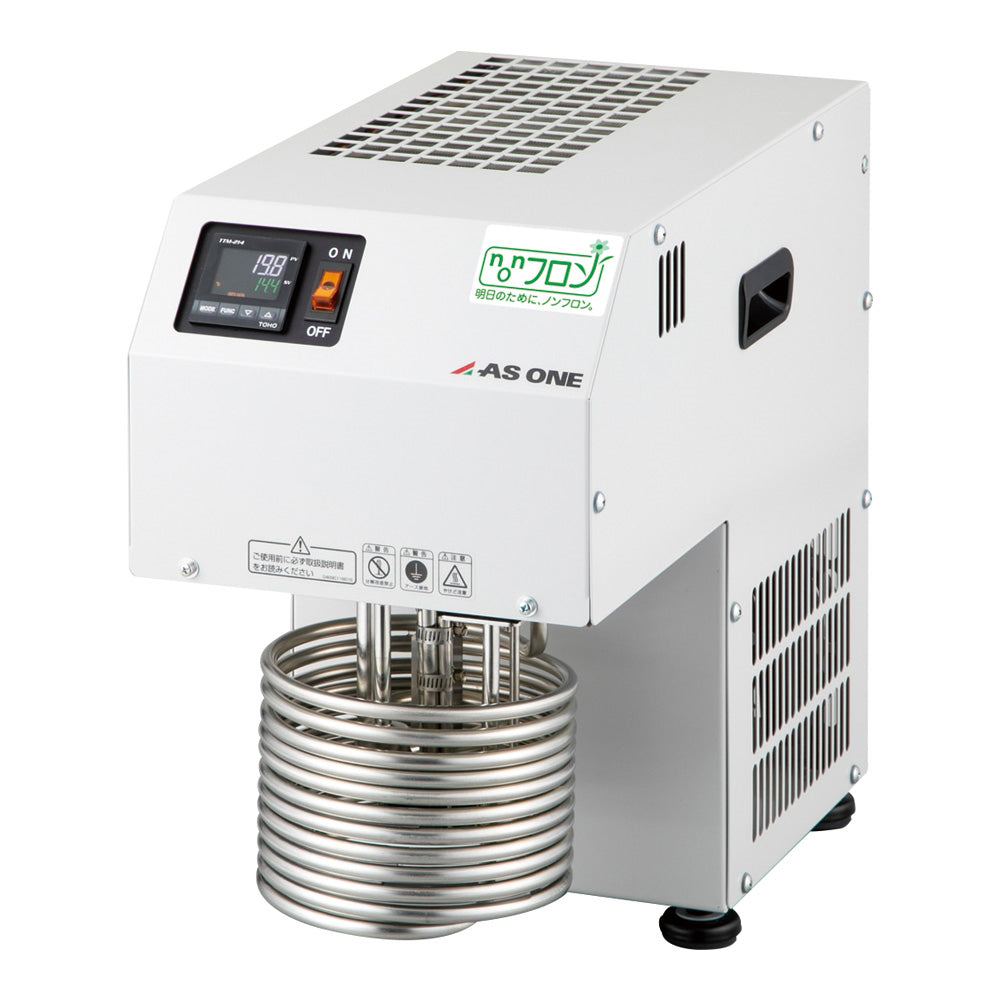

Heating and cooling can be achieved by simply placing a cooling coil in the water tank.
Stirring function is standard equipment.
We use the environmentally friendly non-freon refrigerant R1234yf, which has an ozone depletion potential of 0 and a global warming potential of less than 1.
Since it is not subject to the Fluorocarbons Emissions Reduction Act, there is no need for regular inspections, record keeping, or fluorocarbon disposal costs.
Equipped with various safety protection functions. External dimensions (mm): 230 x 415 x 390 *External dimensions do not include protruding parts.
Quantity: 1 piece
Liquid temperature range: -10 to +60°C
Cooling capacity (50/60Hz): 350W/370W/at 20℃, 105W/145W/at -10℃ *When operating at an ambient temperature of 32℃ and using an ethylene glycol aqueous solution
Temperature control range: ±0.2℃ *Reference value when using an ambient temperature of 32℃, set temperature of 20℃, water tank (S-1), and 12L of ethylene glycol aqueous solution. Varies depending on water tank, liquid volume, set temperature, and liquid type.
Display method: PV/SV digital two-level display (0.1°C)
Temperature control method: PID control
Temperature sensor: Resistance thermometer (Pt100Ω)
Liquid type: Pure water, ethylene glycol aqueous solution
Refrigerant: R1234yf
Mixing function: Jet mixing type
Heater: 1000W
Protection devices: earth leakage breaker, compressor motor protector, high pressure switch, upper limit temperature abnormality detector
Maximum operating current (50/60Hz): 13.2/12.8A
Power supply: AC100V 50/60Hz
Weight: 18kg
*Aquarium is not included (recommended aquarium: 1-4163-01).
