Non-Blen Anti-Vibration Non-Blen Sheet Navy 100 x 100 x t5 Hardness 15 NSA-S15-T5 1 sheet

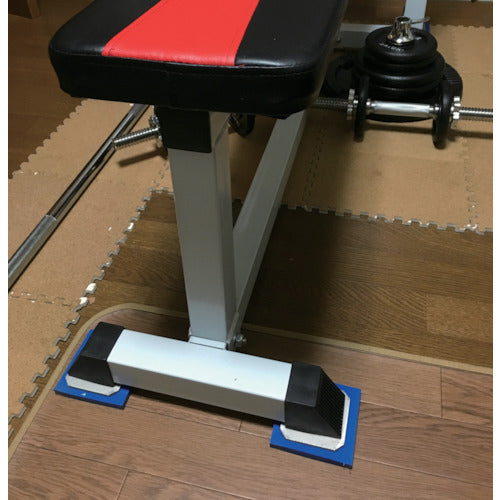

Catalog number: NSA-S15-T5 Features: ●Excellent shock absorption, so vibration can be prevented without making the equipment heavy and rigid. ●Can be used in electronic parts and semiconductor factories as it does not generate siloxane gas. ●Can prevent vibration in the low frequency range. Applications: ●Shock buffering and vibration prevention for precision equipment, medical equipment, measuring equipment, etc. ●Shock buffering and vibration prevention for compressors, pumps, engines, transportation, vehicles, ships, precision equipment, medical equipment, measuring equipment, etc. Specifications: ●Thickness (mm): 5 ●Width (mm): 100 ●Length (mm): 100 ●Color: Navy blue ●Permissible surface pressure (N/[mm2]): 1.76 ●Appropriate load (kg): 470 ●Appropriate load (kg/sheet): 470 ●Size of 1 sheet (mm): 100 x 100 ●Vibration isolation frequency (Hz): 26.4 ●Gel hardness: 15 (Askar C) ●Gel length: 100mm ●Gel width: 100mm ●Gel thickness: 5mm ●Recommended load: 470kg ●Permissible load: 1800kg ●Natural frequency: 26.4Hz Material/Finish: ●Urethane resin Caution: ●When installing, make sure the load is applied in the compression direction and take care not to twist the non-blend.
