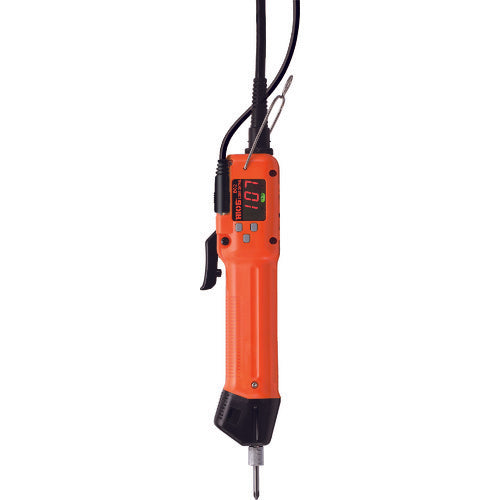

HIOS Pulse System Built-in Brushless Electric Driver BLG-5000BC2 1 unit

Catalog number: BLG-5000BC2 Features: * Counts the number of motor rotation pulses to detect screw tightening errors in real time with high precision. * Can detect the mixing of different types of screws, loose screws, jamming, cam-out, pilot hole damage, and mistakes. * Equipped with a serial port, allowing system management of screw tightening errors. * Easy setup with direct teaching. * Uses a brushless motor to reduce power consumption. Applications: * High-precision screw tightening work. Specifications: ● Output torque (N・m): 0.2-1.2 ● Suitable screws (mm) small screws: 2.0-3.0 ● Power cord length (m): 2 ● No-load rotation speed (min-1): 690/1000 ● Suitable screws (mm) tapping screws: 2.0-3.0 ● Overall length (mm): 235 ● Anti-static: Compatible ● Grip diameter (mm): MAX φ38 ● Width (mm): 46 ● Length (mm): 235 ● Push/lever dual start type ● Suitable power supply (sold separately): BLC-45 (except BLG-7000BC2, BLG-5000BC2-18 (compatible with all brushless screwdriver models)), BLC-70 ● Can be connected to a PC or PLC for system management of screw tightening errors (requires separately sold cable) Material/Finish: ● Body: Resin Set contents/Accessories: ● Driver cord (6P) 2m ● Torque adjustment wrench
