アズワン

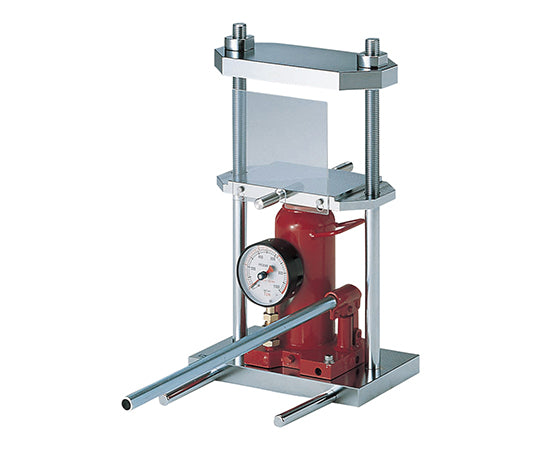

High pressure jack J-15 1 unit
High pressure jack J-15 1 unit
Regular price
¥403,700
Regular price
Sale price
¥403,700
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Suitable for destructive testing of samples.
It operates hydraulically, making it easy to apply weight.
The meter has two needles and is of the residual type (※1), so it can be used as a simple testing device.
(※1) Example: In a destructive test, the needle goes to 0 when the test breaks, and the needle stops at the point of the breaking pressure. Size: 320 x 350 x 560 mm
Plate size (effective width): 200 x 150 mm
Stroke: 0 to 150 mm
Pressure gauge: 0 to 15t (with needle)
Plate load: 0 to 15t
Power supply: None
Weight: 56kg
*Pressure cannot be maintained for long periods of time.
*We recommend using a pressure of 50% or more of the maximum value.
