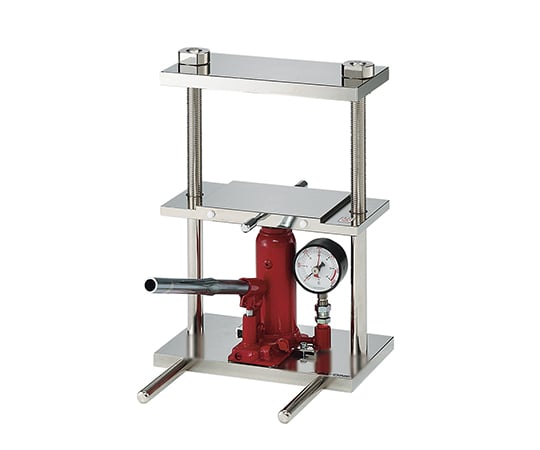

High pressure jack J-5 1 piece

Suitable for destructive testing of samples. It operates hydraulically so loading is easy. The meter has two needles and is of the residual type*1, so it can be used as an easy tester. *1 Example: In a destructive test, one needle goes to 0 when the device is broken, and the other needle stops at the point of the breaking pressure. Size (mm): 320 x 380 x 480 Plate size (effective width): 200 x 150 mm Stroke: 0 to 110 mm Pressure gauge: 0 to 5t (with needle) Plate load: 0 to 5t Power supply: None Weight: 35kg *Pressure cannot be maintained for long periods of time. *We recommend using a pressure of 50% or more of the maximum value.
