Housing 1PP-1-FS-000 43011000 1 unit

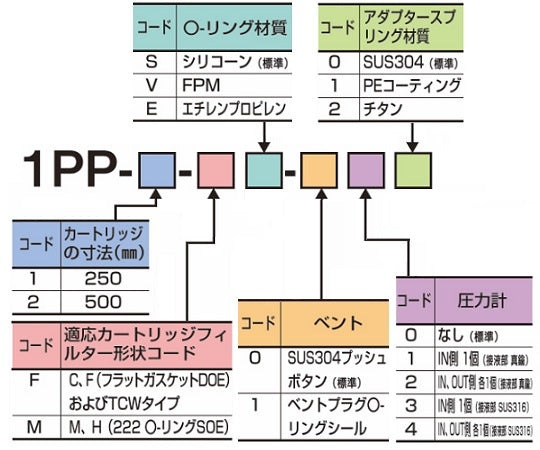

This is a single-piece plastic housing consisting of a head and body. Since high-purity polypropylene containing no fillers or colorants is used, there is almost no leaching from the housing, making it suitable for filtering high-purity chemicals and ultra-pure water. The smooth inner surface of the housing makes it difficult for fine particles and microorganisms to remain or adhere, providing excellent sanitation. The 1PP type is available in filter dimensions of 250mm and 500mm, and you can select models that are compatible with cartridge filter shape codes C, F (flat gasket DOE), TCW type, and M, H (222 O-ring SOE). Number of cartridges: 250mm x 1 Compatible cartridge filter shape code: C, F (flat gasket DOE) and TCW type IN/OUT shape: 3/4"PTF (with 3/4"PT nipple) Dimensions: Height (mm) / 340, Width / 200mm Maximum operating pressure: 0.49MPa (25℃), 0.19MPa (60℃) Maximum operating temperature: 60℃ Material: Head/Polypropylene, Body/Polypropylene, O-ring/Silicone (standard), Vent/SUS304 (Push button type, standard), Adapter/Polypropylene, Adapter spring/SUS304 (standard), 3/4"PT nipple/Polypropylene Mass (kg): 0.84 Pressure gauge: None (standard) *Cannot be used for gas filtration. *Cannot be sterilized by autoclave. *Please wrap sealing tape around the tapered threads of the piping before use. *This product is made of plastic and will deteriorate over time. *The degree of deterioration will vary depending on the conditions of use such as temperature, pressure, and chemicals. If you notice any abnormality, please replace the product with a new product or, if there is an optional part, replace it with that part. *Do not connect metal piping directly to the head. *Do not tighten the vent plugs or drain plugs with tools such as an adjustable wrench.
