(株)ハタヤリミテッド

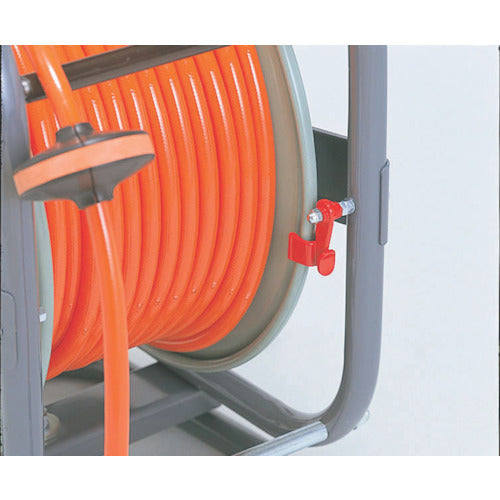

Hataya Urethane Air Reel 28+2m Inner Diameter φ6.5 Polyurethane Hose UCS-302 1 Unit
Hataya Urethane Air Reel 28+2m Inner Diameter φ6.5 Polyurethane Hose UCS-302 1 Unit
Regular price
¥30,827
Regular price
Sale price
¥30,827
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: UCS-302 Features: ● Box type with enhanced stability and ease of use. ● Rotary coupler: Prevents hose twisting and tangling, and aids in free movement. ● Aluminum die-cast storage rack: Allows for neat storage of primary hose. ● Brake clip: Prevents hose sagging. Simply insert into the disc to easily secure. Specifications: ● Hose inner diameter x outer diameter (mm): 6.5 x 10 ● Total hose length (m): 28 ● Primary installation side: HC-2P1/4 plug coupler ● Secondary installation side: HC-2R1/4 rotary nut coupler ● Width (mm): 348 ● Depth (mm): 369 ● Height (mm): 348 ● Operating pressure: 1.5MPa ● Primary hose: 2m Material/Finish: ● Hose: Polyurethane (with braid)
