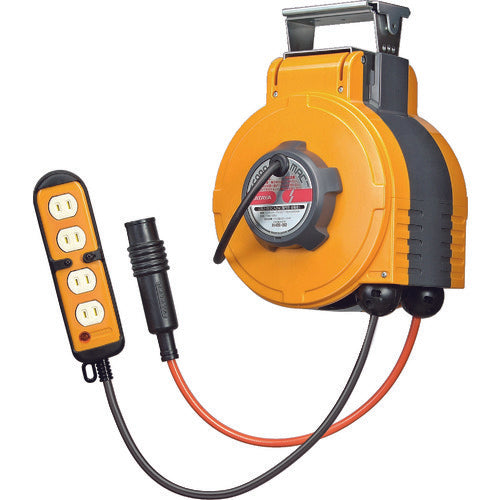

Hataya 2WAY Mac Single Phase 100V 8m/Air Hose 8m CBU-082QA8W 1 unit

Catalog number: CBU-082QA8W Features: ● Equipped with a temperature sensor to prevent the wire from melting or catching fire. ● Two types of reels in one body (four-port outlet + air). ● Automatic winding for smooth insertion and removal. ● Ratchet-type stopper that stops reliably at a certain length. ● Equipped with a hose pull-out string to prevent damage to the equipment or breakage of the wire. Applications: ● Automobile production lines ● Production factories ● Automobile and vehicle maintenance Specifications: ● Hose inner diameter x outer diameter (mm): 6.5 x 10 ● Total hose length (m): 8 ● Primary installation side: HC-2P ● Secondary installation side: HC-2RO ● Hose material: Braided yarn reinforced 1B braided polyurethane ● Wire specification length (m): 8 ● Wire specification thickness (mm2): 2.0 ● Wire specification number of cores (C): 2 ● Outlet specification: Two-phase 2 x 4 ● Rated voltage (V): 100 ● Outlet specification rating: 2P, 15A, 125V ● Temperature sensor: Yes ● Pilot lamp: Yes ● Wire type: Softon cable VCT ● Rated current (A): 8 ● AC100V ● Rated current: 8A ● Operating pressure: 1.5MPa ● Outlet with dustproof shutter ● With pull cord ● Primary side hose length A: 1m Materials/Finish: ● Body: ABS resin ● Hose: Braided yarn reinforced 1B braided polyurethane Set contents/accessories: Primary side wire 1m
