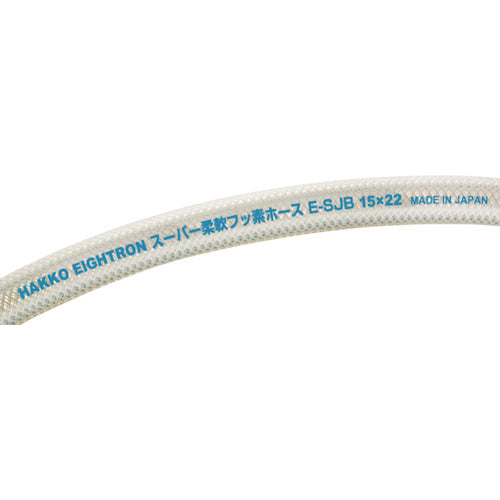

Hakko Super Flexible Fluorine Hose 15 x 22 20m E-SJB-15 1 roll

Catalog number: E-SJB-15 Features: ●The inner layer is made of tetrafluoroethylene resin (ETFE), which provides excellent solvent and chemical resistance and is resistant to most chemicals. Applications: ●Pipes for transporting chemicals, food, beverages, oil, gasoline, etc. Specifications: ●Inner diameter (mm): 15 ●Outer diameter (mm): 22 ●Total length (m): 20 ●Minimum bending radius (mm): 105 ●Operating pressure (MPa): 0 to 1.0 ●Operating temperature range (℃): -20 to 70 ●Compatible fluids: dimethylformamide, sulfuric acid, ozone ●Operating temperature range: -20 to 80℃ Materials/Finish: ●Inner layer: tetrafluoroethylene resin (ETFE) ●Outer layer: urethane-based elastomer ●Reinforcing thread: polyester thread
