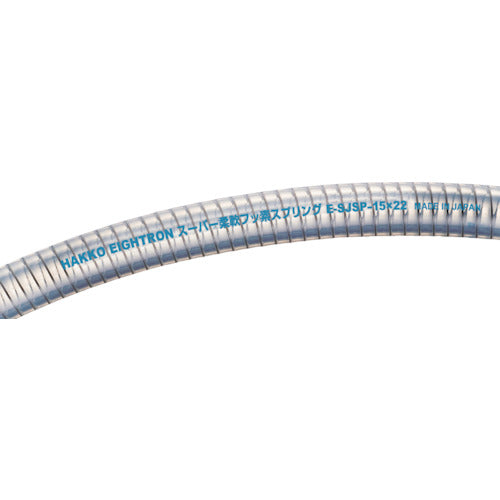

Hakko Chemical-resistant Fluorine Hose Super Flexible Fluorine Spring 25 x 33 20m E-SJSP-25 1 roll

Catalog number: E-SJSP-25 Features: ●The inner layer is made of tetrafluoroethylene resin (ETFE), which has excellent solvent and chemical resistance and is resistant to most chemicals. ●It is resistant to crushing and has excellent bending shape retention, so it can also be used for vacuum (suction). Applications: ●Pipes for transporting chemicals, food, beverages, oil, gasoline, etc. Specifications: ●Color: transparent ●Inner diameter (mm): 25 ●Outer diameter (mm): 33 ●Total length (m): 20 ●Minimum bending radius (mm): 100 ●Operating pressure (MPa): -0.1 to 0.4 ●Operating temperature range (℃): -20 to 80 ●Compatible fluids: butyl acetate, methyl isobutyl, ethylenediamine ●Operating temperature range: -20 to 80℃ Materials/Finish: ●Inner layer: tetrafluoroethylene resin (ETFE) ●Outer layer: urethane elastomer ●Spring: stainless steel (SUS304)
