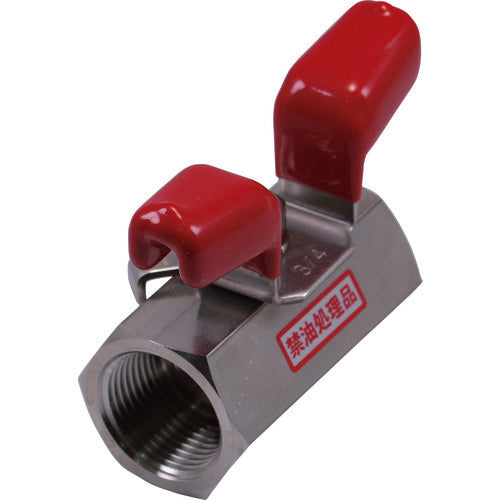

Hamai Stainless Steel Oil-Free Ball Valve (Wing) BSS-273-20RC 1 pc

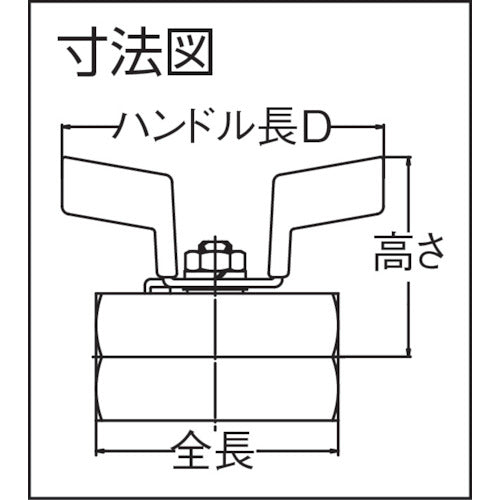

Catalogue number: BSS-273-20RC Features: ●Stainless steel ball valve with butterfly handle/wing handle. ●Model with PCW oil-free treatment. ●After degreasing and cleaning each part with a hydrocarbon-based cleaning machine, they are assembled by bare hands without using any grease or other oils after drying, and shipped in individual packages. ●Ideal for use in fields where oil management is required, such as water treatment and food-related facilities. Applications: ●For water, oil, and gas. ●Medical, oxygen production, food, semiconductors, etc. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●Total length (mm): 61 ●Height (mm): 50 ●Handle length D (mm): 80 ●Maximum allowable pressure (MPa): 3.92 ●Operating temperature range (℃): -20 to 120 (antifreeze) ●Compatible fluids: water, oil, gas, etc. ●Nominal diameter (mm): 27.2 ●Face to face (mm): 61 ●Inner diameter (mm): 12.5 ●Connection: RC x RC ●Country of manufacture: Japan ●Maximum pressure: 3.92MPa (water, oil, gas at room temperature) Material/Finish: ●Stainless steel (SUS316) Caution: ●Please consult us if you are using dangerous fluids such as flammable, toxic, or high-pressure gas.
