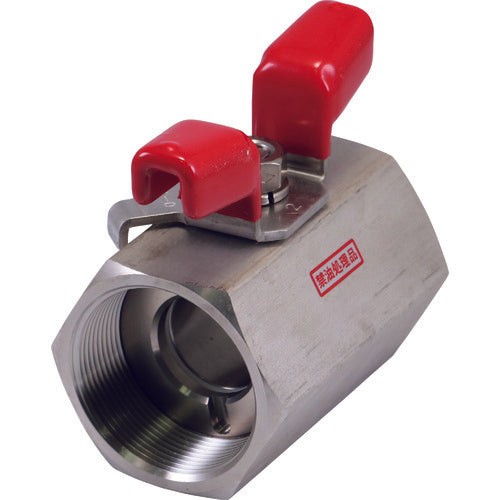

Hamai Stainless Steel Oil-Free Ball Valve (Wing) BSS-857-50RC 1 pc

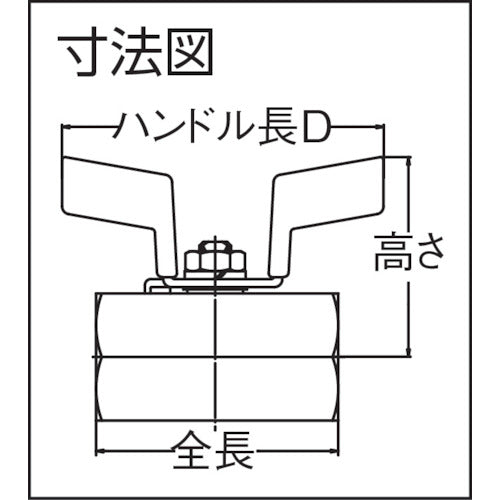

Catalog number: BSS-857-50RC Features: *Stainless steel ball valve with butterfly handle/wing handle. *Model with PCW oil-free treatment. *After degreasing and cleaning each part with a hydrocarbon-based cleaning machine, they are assembled by bare hands without using any grease or other oils, and shipped in individual packages. *Ideal for use in fields where oil management is required, such as water treatment and food-related facilities. Applications: *For water, oil, and gas. Specifications: ●Nominal diameter A: 50 ●Nominal diameter B: 2 ●Total length (mm): 100 ●Height (mm): 79 ●Handle length D (mm): 110 ●Maximum allowable pressure (MPa): 3.92 ●Operating temperature range (℃): -20 to 120 (antifreeze) ●Compatible fluids: water, oil, gas, etc. ●Nominal diameter (mm): 60.5 ●Face to face (mm): 100 ●Inner diameter (mm): 32 ●Connection: RC x RC ●Country of manufacture: Japan ●Maximum pressure: 3.92MPa (water, oil, gas at room temperature) Material/Finish: ●Stainless steel (SUS316) Caution: ●Please consult us if you are using dangerous fluids such as flammable, toxic, or high-pressure gas.
