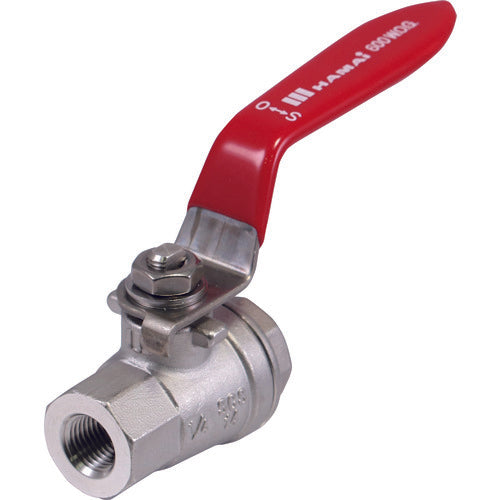

Hamai Stainless Steel Oil-Free Ball Valve (Full Bore) Nominal Diameter A8 TSS-30-08RC 1 pc

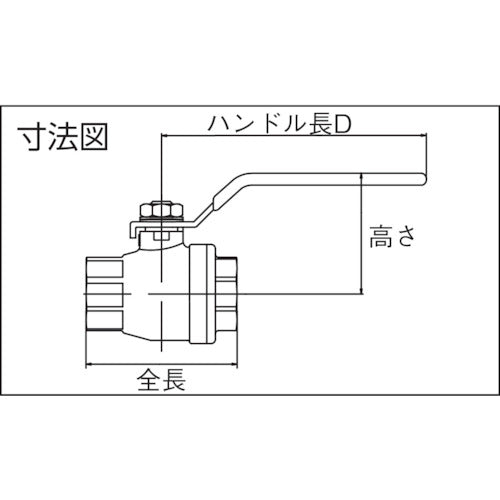

Catalog number: TSS-30-08RC Features: ●Large flow rate, full bore equivalent stainless steel ball valve. ●Each part is degreased and cleaned with a hydrocarbon-based cleaning machine, and after drying, assembled by bare hands without using any oil such as grease, and shipped in individual packaging. ●Ideal for use in fields where oil management is required, such as water treatment and food-related facilities. Applications: ●For water, oil, and gas. Specifications: ●Nominal diameter A: 8 ●Nominal diameter B: 1/4 ●Total length (mm): 50 ●Height (mm): 48 ●Handle length D (mm): 93 ●Maximum allowable pressure (MPa): 3.92 ●Operating temperature range (℃): -20 to 160 (antifreeze) ●Compatible fluids: water, oil, gas, etc. ●Nominal diameter (mm): 13.8 ●Face to face (mm): 50 ●Inner diameter (mm): 10 ●Connection: RC x RC ●Country of manufacture: Japan ●Full bore type ●Maximum pressure: 3.92MPa (water, oil, gas at room temperature) Material/Finish: ●Stainless steel (SCS14) Caution: ●Please consult us if you are using dangerous fluids such as flammable, toxic, or high-pressure gas.
