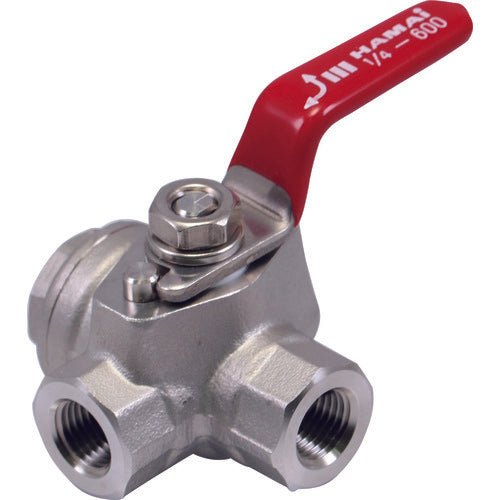

Hamai Stainless Steel 3-Way Ball Valve RSS-14-25RC 1 pc

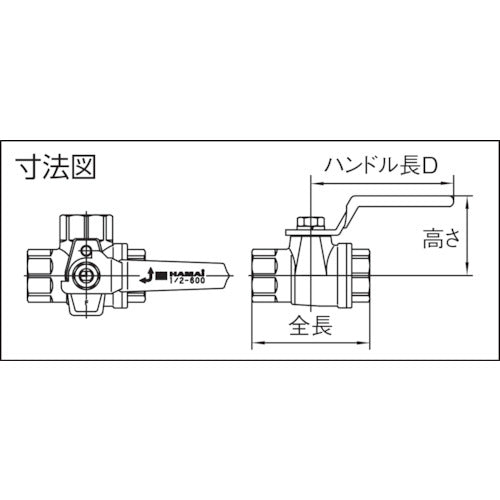

Catalog number: RSS-14-25RC Features: ●Standard model of stainless steel three-way ball valve. ●Although it has two seats, an O-ring is built into the back of the seat, so there is little unevenness in the sealing function in the direction of the flow path, and it can be used from any port direction. ●Stainless steel drawn material (some extruded material) is used for the main parts. ●Compared to cast products, it reduces the risk of the threaded part cracking during piping. ●Fluoro rubber is used for the O-ring. ●It can be used for various facilities and factory piping that handle various fluids. Applications: ●For water, oil, and gas. Specifications: ●Nominal diameter A: 25 ●Nominal diameter B: 1 ●Total length (mm): 90 ●Height (mm): 56.0 ●Handle length D (mm): 80 ●Maximum allowable pressure (MPa): 4.12 ●Operating temperature range (℃): -10 to 120 (antifreeze) ●Compatible fluids: water, oil, gas, etc. ●Nominal diameter (mm): 34 ●Face to face (mm): 90 ●Inner diameter (mm): 21 ●Connection: RC x RC ●Country of manufacture: Japan ●Maximum pressure: 4.12MPa (water, oil, gas at room temperature) Material/Finish: ●Stainless steel (SUS F316) Caution: ●Please consult us if you are using dangerous fluids such as flammable, toxic, or high-pressure gas.
