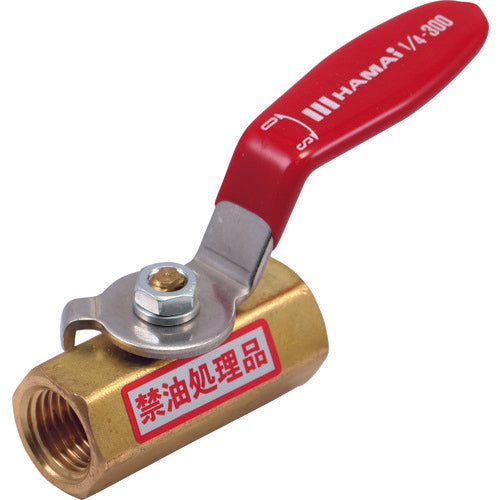

Hamai Brass Oil-Free Ball Valve (Lever) BBS-92-20RC 1 pc

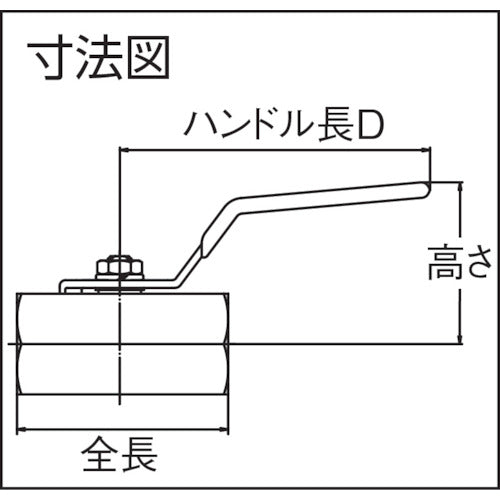

Catalog number: BBS-92-20RC Features: ●After degreasing and cleaning each part with a hydrocarbon-based cleaning machine, they are dried and then assembled by bare hands without using any oil such as grease, and shipped in individual packages. ●Ideal for use in fields where oil management is required, such as water treatment and food-related facilities. Applications: ●For water, oil, and gas. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●Total length (mm): 61.0 ●Height (mm): 51 ●Handle length D (mm): 100 ●Maximum allowable pressure (MPa): 1.96 ●Operating temperature range (℃): -10 to 120 (antifreeze ●Suitable fluids: water, oil, gas, etc. ●Nominal diameter (mm): 27.2 ●Face to face (mm): 61 ●Inner diameter (mm): 12.5 ●Connection: RC x RC ●Maximum pressure: 1.96 MPa (water, oil, gas at room temperature) Material/Finish: ●Brass (C3771) Caution: ●Please consult us if you are using dangerous fluids such as flammable, toxic, or high-pressure gas.
