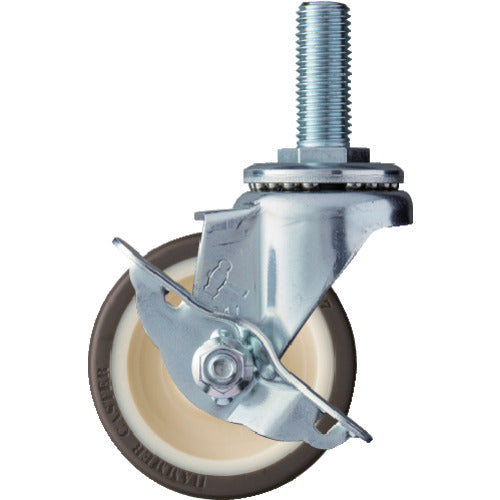

Hammer Screw-in type Caster with stopper and urethane bearing 75mm 413SA-UB75 1 piece

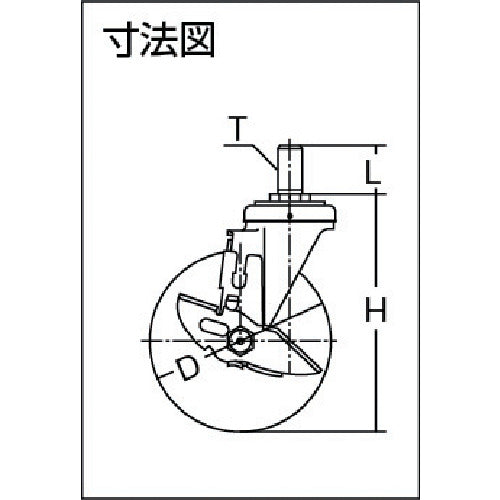

Catalogue number: 413SA-UB75 Features: ●High resistance to loads and smooth rotation. ●Ideal for casters on heavy wagons, etc. ●Complies with RoHS. Applications: ●All-purpose caster for medium to heavy loads. Specifications: ●Wheel diameter D (mm): 75 ●Type: Swivel (with stopper) ●Allowable load (daN): 80 ●Allowable load (kgf): 81.6 ●Wheel width (mm): 27 ●Mounting height H (mm): 97 ●Axle length L (mm): 40 ●Thread T: M16 ●Thread pitch (mm): 2.0 ●Screw-in type ●Swivel (with stopper) ●Roller bearing Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium conversion treatment ●Wheels: Nylon wheel, thermoplastic urethane
