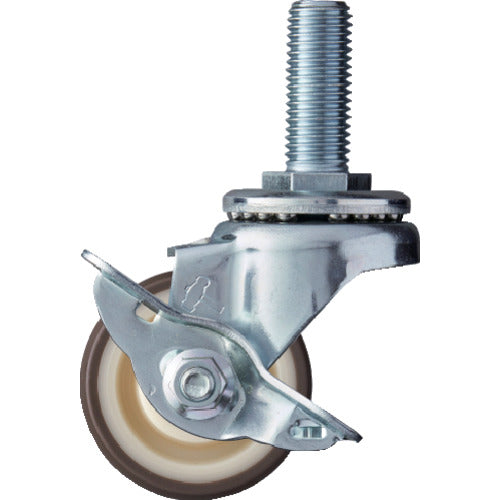

Hammer Screw-in type Swivel type urethane wheel (radial ball bearing) 50 mm with stopper 413SA-UB50 1 piece

Catalog number: 413SA-UB50 Features: ● A typical screw-in caster with high resistance to load and smooth turning. Applications: ● For use in various locations such as factories, stores, and offices. Specifications: ● Wheel diameter D (mm): 50 ● Type: Swivel (with stopper) ● Allowable load (daN): 60 ● Allowable load (kgf): 61.2 ● Wheel width (mm): 25 ● Mounting height H (mm): 74 ● Shaft length L (mm): 40 ● Thread T: M16 ● Thread pitch (mm): 2.0 ● Eccentricity E (mm): 26 ● Turning radius (mm): 52 ● Screw-in type ● Wheel fixing method: Nut Material/Finish: ● Metal fittings: Steel ● Wheels: Urethane (thermoplastic)
