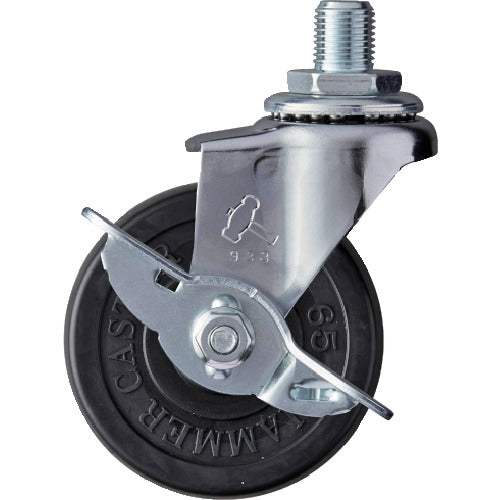

Hammer Screw-in Swivel Rubber Wheel 65mm UNF1/2 with Stopper 415A-10R65 1pc

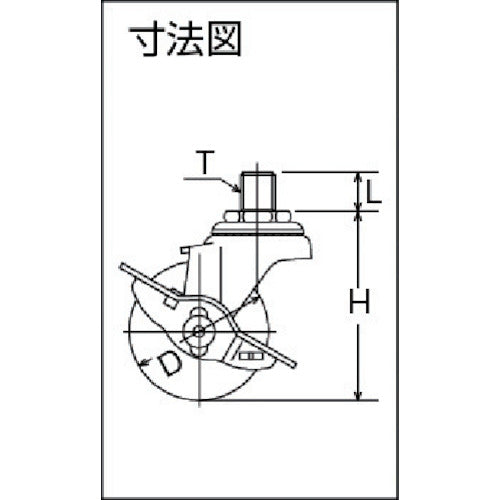

Catalog number: 415A-10R65 Features: ● Widely used in environments that require design and lightness. ● Uses unified and metric screws that are often used in office furniture such as chairs. ● RoHS compliant. Applications: ● Screw-in type that can be installed with a single wrench. Specifications: ● Wheel diameter D (mm): 65 ● Type: With swivel S ● Allowable load (daN): 30 ● Allowable load (kgf): 30.6 ● Wheel width (mm): 21 ● Mounting height H (mm): 85 ● Shaft length L (mm): 14 ● Thread T: UNF1/2 ● Threads: 20 threads ● Allowable load (N): 300 ● Screw-in type ● Swivel type (with stopper) ● Spanner size: 12 x 14 (UNF3/8, W3/8, W5/16), 19 x 21 (UNF1/2, M12) Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Chrome plated finish ● Wheels: Rubber
