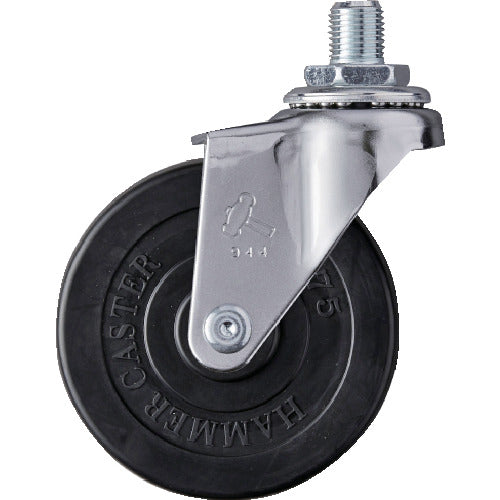

Hammer Screw-in Swivel Rubber Wheel 75mm UNF1/2 420A-10R75 1pc

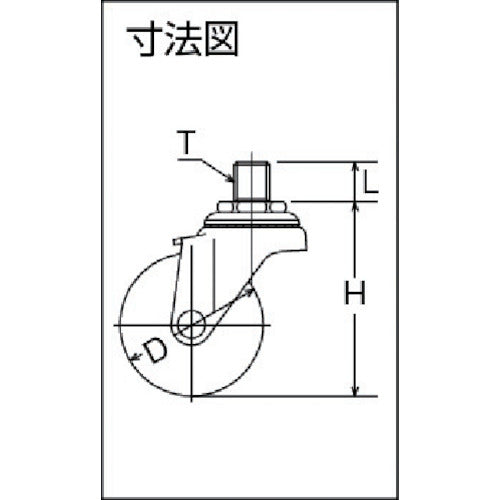

Catalog number: 420A-10R75 Features: ● Widely used in environments where design and lightness are required. ● RoHS compliant. ● Uses unified and metric screws that are often used in office furniture such as chairs. Applications: ● Screw-in type that can be installed with a single wrench. Specifications: ● Wheel diameter D (mm): 75 ● Type: Free-wheeling ● Allowable load (daN): 40 ● Allowable load (kgf): 40.8 ● Wheel width (mm): 21 ● Mounting height H (mm): 95 ● Shaft length L (mm): 14 ● Thread T: UNF1/2 ● Threads: 20 threads ● Allowable load (N): 400 ● Screw-in type ● Free-wheeling ● Spanner size: 12 x 14 (UNF3/8, W3/8, W5/16), 19 x 21 (UNF1/2, M12) ● Unified thread type Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Chrome plating finish (wheel diameter 32 mm is trivalent chromium chemical treatment) ● Wheels: Rubber
