Hammer All stainless steel Swivel urethane B wheel 200mm 300S-UB200 1 piece

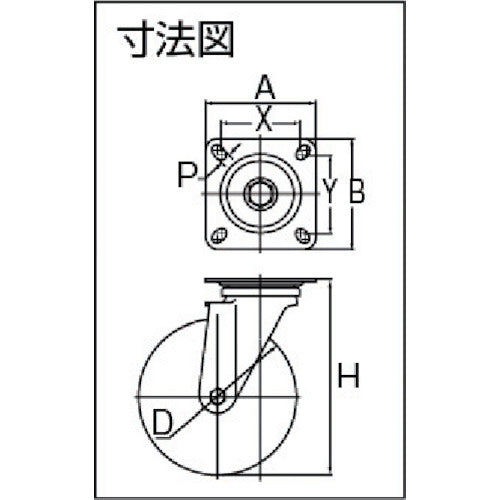

Catalogue number: 300S-UB200 Features: ● Made of all stainless steel with excellent corrosion and water resistance. Applications: ● For food and fisheries industries that do not tolerate rust, and chemical industries that use solvents. Specifications: ● Wheel diameter D (mm): 200 ● Type: Swivel ● Allowable load (daN): 220 ● Allowable load (kgf): 224.4 ● Wheel width (mm): 44 ● Mounting height H (mm): 250 ● Mounting seat A (mm): 140 ● Mounting seat B (mm): 140 ● Mounting pitch X (mm): 100-112 ● Mounting pitch Y (mm): 100-112 ● Mounting hole diameter P (mm): 13 ● Swivel ● Plate type ● Stainless steel radial ball bearing included Materials/Finish: ● Metal fittings: Stainless steel (SUS304) ● Wheels: Nylon wheels, thermoplastic urethane wrapped wheels
