Hammer All SUS Low-profile Fixed Special Nylon 32mm 320TPR-N32 1 pc

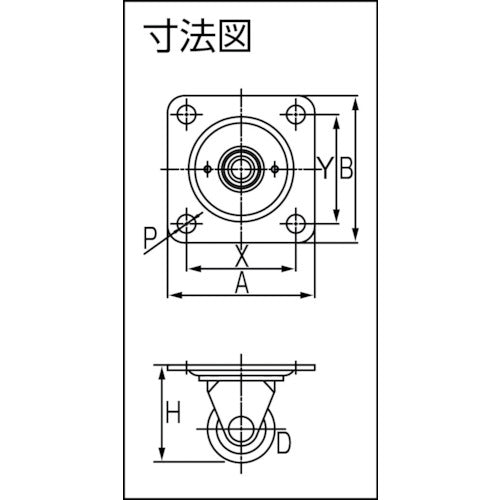

Catalog number: 320TPR-N32 Features: ● A low-floor, all-stainless steel caster with a low mounting height that meets the requirements for heavy loads. ● Used for heavy items such as freezer showcases that have height restrictions. Applications: ● For use in commercial refrigerators and other locations near water or where corrosion is undesirable. Specifications: ● Wheel diameter D (mm): 32 ● Type: Fixed type ● Allowable load (daN): 120 ● Allowable load (kgf): 122.4 ● Wheel width (mm): 21 ● Mounting height H (mm): 46.5 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 70 ● Mounting pitch X (mm): 52 ● Mounting pitch Y (mm): 52 ● Mounting hole diameter P (mm): 8.8 ● Mounting height (mm): 46.5 ● Mounting seat (mm): 70 x 70 ● Mounting dimensions (mm): 52 x 52 ● Mounting hole diameter (mm): 8.8 ● Plate type ● Low-floor type ● Fixed type Material/Finish: ● Metal fittings: Stainless steel (SUS304) ● Wheels: Reinforced nylon
