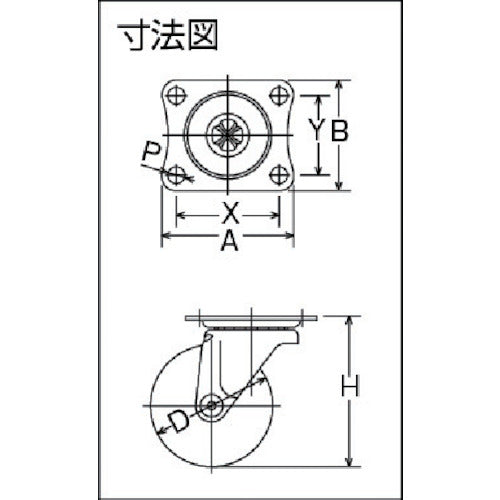

Catalogue number: 420G-R32 Features: ●The most widely produced and used in a variety of locations. ●Complies with RoHS. Applications: ●An all-purpose lightweight type that can be used both indoors and outdoors. Specifications: ●Wheel diameter D (mm): 32 ●Type: Swivel ●Allowable load (daN): 12 ●Allowable load (kgf): 12.24 ●Wheel width (mm): 14 ●Mounting height H (mm): 42 ●Mounting seat A (mm): 38 ●Mounting seat B (mm): 32 ●Mounting pitch X (mm): 30 ●Mounting pitch Y (mm): 24 ●Mounting hole diameter P (mm): 4.2 ●Allowable load (N): 120 ●Plate type ●Wheel shape: Integrated rubber wheel Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium plating finish ●Wheels: Rubber
