ハンマーキャスター(株)

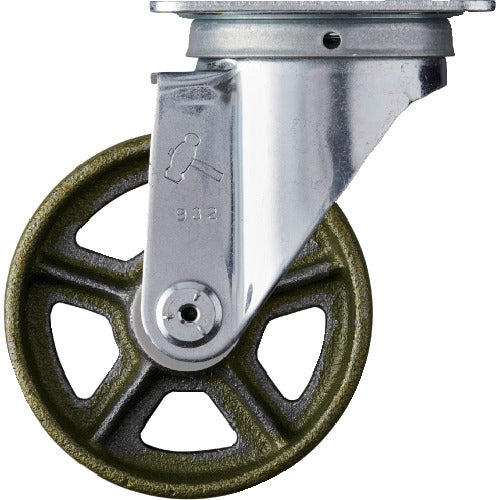

Hammer Caster 420S-C100 1 piece
Hammer Caster 420S-C100 1 piece
Regular price
¥2,681
Regular price
Sale price
¥2,681
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: 420S-C100 Features: ●A high-quality large caster with high resistance to loads and smooth rotation. ●Widely used in factories and offices, it is robust and stable, making it ideal for transporting heavy objects. Specifications: ● Wheel diameter D (mm): 100 ● Type: Free-moving ● Allowable load (daN): 120 ● Allowable load (kgf): 122.4 ● Wheel width (mm): 30 ● Mounting height H (mm): 132 ● Mounting seat A (mm): 90 ● Mounting seat B (mm): 90 ● Mounting pitch X (mm): 68-71 ● Mounting pitch Y (mm): 68-71 ● Mounting hole diameter P (mm): 11 ● Mounting dimensions (mm): 68 x 68 (71 x 71) ● Mounting height (mm): 132 ● Mounting seat (mm): 90 x 90 ● Mounting hole diameter (mm): 11 ● Plate type Material/Finish: ● Body: Steel ● Surface treatment: Trivalent chromate chemical treatment ● Wheels: Cast iron
