Hammer Cushion screw type swivel urethane wheel 100mm M12XP1.75 wire diameter 2.9 940BEA-UZ100-M12-29 1 piece

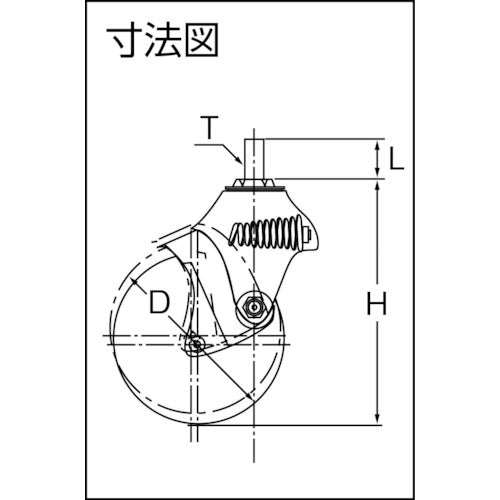

Catalog number: 940BEA-UZ100-M12-29 Features: ●This cushion caster uses the force of the spring to absorb vibrations and shocks on uneven surfaces while reducing noise. ●The load setting changes depending on the built-in spring, allowing for a wide range of uses. ●RoHS compliant. ●Radial ball bearings are used for the main body swivel and wheel bearing. Applications: ●Suitable for transporting precision equipment and parts that are sensitive to vibration and shocks, as well as for use in medical equipment and semiconductor-related facilities. Specifications: ● Wheel diameter D (mm): 100 ● Type: Free-swivel (metric thread type) ● Set load (daN): 24 ● Set load (kgf): 24.48 ● Wheel width (mm): 27 ● Mounting height H (mm): 140-148 ● Shaft length L (mm): 20 ● Thread T: M12 ● Thread pitch (mm): 1.75 ● Screw-in type ● Radial ball bearing included ● Free-swivel (metric thread type) Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium chemical treatment ● Wheels: Nylon wheel, thermoplastic urethane Note: ● The set load indicates the load at which the most effective cushioning against vibration can be obtained per unit.
