Hammer Cushion Caster Swivel Urethane Wheel 100mm Wire Diameter 2.9mm 940BBE-UZ100-29 1 pc

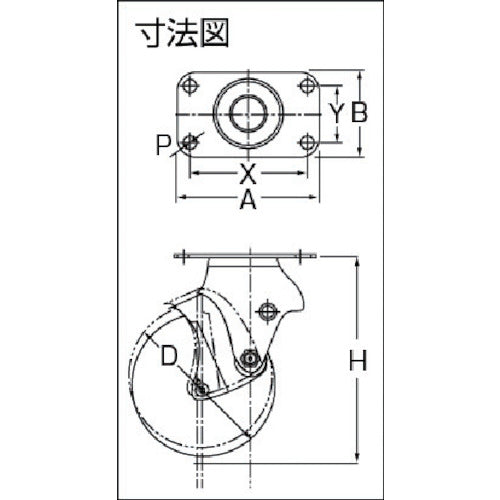

Catalog number: 940BBE-UZ100-29 Features: ● A cushion caster that uses the force of the spring to absorb vibrations and shocks on uneven surfaces while reducing noise. ● The load setting changes depending on the built-in spring, allowing for a wide range of uses. ● Reduces noise generated when turning and rotating the wheels. ● RoHS compliant. Applications: ● Suitable for transporting precision equipment and parts that are sensitive to vibration and shocks, as well as for use in medical equipment and semiconductor-related facilities. Specifications: ● Wheel diameter D (mm): 100 ● Type: Free-swivel ● Set load (daN): 24 ● Set load (kgf): 24.48 ● Wheel width (mm): 27 ● Mounting height H (mm): 135-143 ● Mounting seat A (mm): 100 ● Mounting seat B (mm): 62 ● Mounting pitch X (mm): 82 ● Mounting pitch Y (mm): 40 ● Mounting hole diameter P (mm): 8.8 ● Plate type ● Radial ball bearing included ● Free-swivel Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium chemical treatment ● Wheels: Nylon wheel, thermoplastic urethane Note: ● The set load indicates the load at which the most effective cushioning against vibration can be obtained per unit.
