ハンマーキャスター（株）

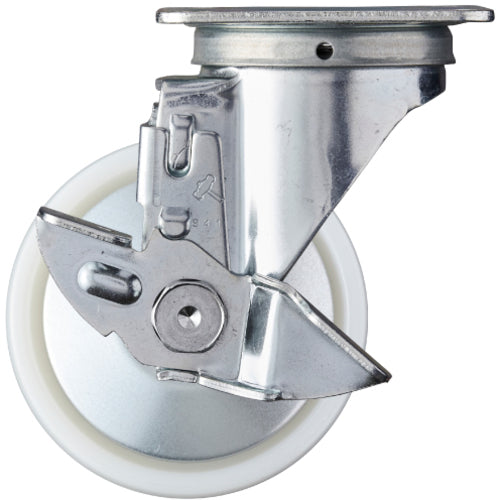

Hammer Plate-type caster Plate-type caster Swivel (with stopper) Wheel diameter 100mm Nylon wheel (roller bearing) 413S-NRB100 1 pc
Hammer Plate-type caster Plate-type caster Swivel (with stopper) Wheel diameter 100mm Nylon wheel (roller bearing) 413S-NRB100 1 pc
Regular price
¥2,518
Regular price
Sale price
¥2,518
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalogue number: 413S-NRB100 Specifications: ● Wheel diameter D (mm): 100 ● Type: Free-swiveling (with stopper) ● Allowable load (daN): 120 ● Wheel width (mm): 29 ● Mounting height H (mm): 132 ● Mounting seat A (mm): 90 ● Mounting seat B (mm): 90 ● Mounting pitch X (mm): 68 (71) ● Mounting pitch Y (mm): 68 (71) ● Eccentricity (E) (mm): 35 ● Turning radius (mm): 91 ● Wheel type: 429S-NRB ● Mounting hole diameter (mm): 11 ● Plate type Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium chemical conversion treatment ● Wheels: Nylon
