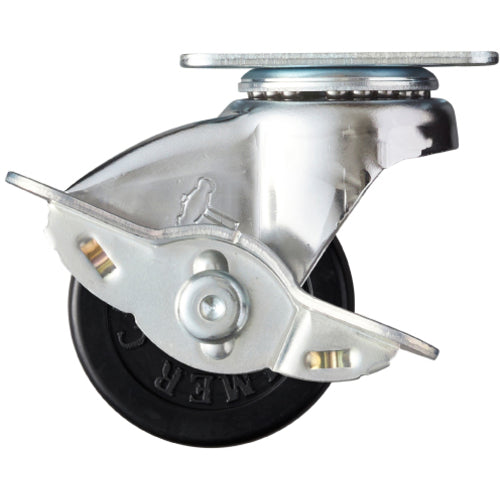

Hammer Plate type caster Plate type caster Swivel (with stopper) Wheel diameter 50mm Rubber wheel 450P 45015P-R50 1 piece

Catalogue number: 45015P-R50 Specifications: ● Wheel diameter D (mm): 50 ● Type: swivel type (with stopper) ● Allowable load (daN): 30 ● Wheel width (mm): 20 ● Mounting height H (mm): 65 ● Mounting seat A (mm): 51 ● Mounting seat B (mm): 31 ● Mounting pitch X (mm): 40 ● Mounting pitch Y (mm): 20 ● Mounting hole diameter P (mm): 5.5 ● Eccentricity (E): 19 mm ● Turning radius: 60 mm ● Wheel type: 425E-R ● Plate type Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium chemical conversion treatment ● Wheels: Rubber
