ハンマーキャスター（株）

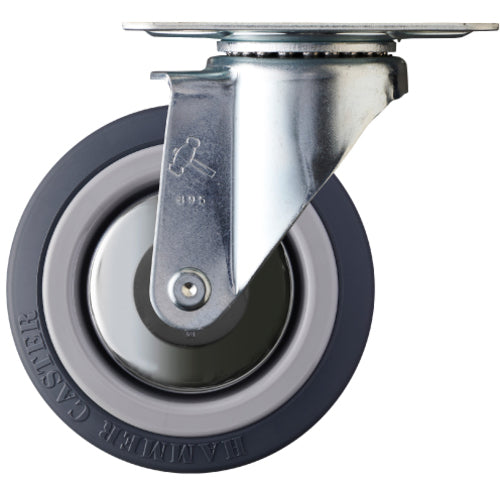

Hammer Plate-type caster Plate-type caster Swivel Wheel diameter 100mm Urethane wheel M series 420M-KUB100 1 piece
Hammer Plate-type caster Plate-type caster Swivel Wheel diameter 100mm Urethane wheel M series 420M-KUB100 1 piece
Regular price
¥2,604
Regular price
Sale price
¥2,604
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalogue number: 420M-KUB100 Specifications: ● Wheel diameter D (mm): 100 ● Type: swivel type ● Allowable load (daN): 70 ● Wheel width (mm): 32 ● Mounting height H (mm): 125 ● Mounting seat A (mm): 105 ● Mounting seat B (mm): 80 ● Mounting pitch X (mm): 76 (87) ● Mounting pitch Y (mm): 57 (60) ● Mounting hole diameter P (mm): 8.6 ● Eccentricity (E): 32 mm ● Turning radius: 84 mm ● Wheel type: 434MB-KUB ● Plate type Material/Finish: ● Body: Steel ● Surface treatment: Trivalent chromate conversion treatment ● Wheel: Urethane
