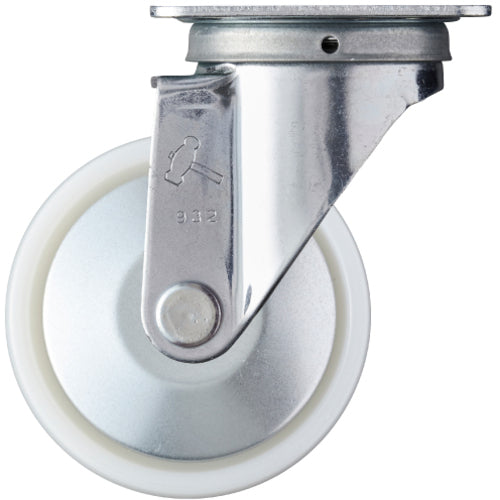

Hammer Plate-type caster Plate-type caster Swivel Wheel diameter 100mm Nylon wheel (roller bearing) 420S-NRB100 1 piece

Catalog number: 420S-NRB100 Features: ●High resistance to loads and smooth turning. ●A caster made by pressing extremely thick material to withstand heavy loads. Specifications: ●Wheel diameter D (mm): 100 ●Type: Swivel ●Allowable load (daN): 120 ●Wheel width (mm): 29 ●Mounting height H (mm): 132 ●Mounting seat A (mm): 90 ●Mounting seat B (mm): 90 ●Mounting pitch X (mm): 68 (71) ●Mounting pitch Y (mm): 68 (71) ●Mounting hole diameter P (mm): 11 ●Eccentricity (E): 35 mm ●Turning radius: 86 mm ●Wheel type: 429S-NRB ●Plate type Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium conversion treatment ●Wheels: Nylon
