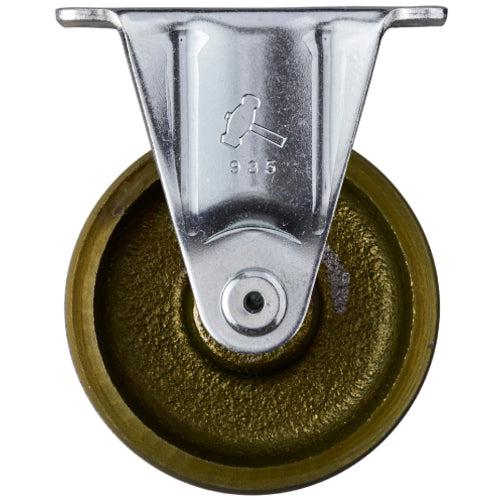

Hammer Plate Type Fixed Cast Caster 65 Diameter S Series 420SR-C65 1 pc

Catalog number: 420SR-C65 Features: ●Fixed caster that can be used in conjunction with swivel casters 420S/413S. ●Widely used in factories and offices, it is robust and stable, making it ideal for transporting heavy objects. Specifications: ●Wheel diameter D (mm): 65 ●Type: Fixed ●Allowable load (daN): 70 ●Allowable load (kgf): 71.4 ●Wheel width (mm): 25 ●Mounting height H (mm): 85 ●Mounting seat A (mm): 70 ●Mounting seat B (mm): 47 ●Mounting pitch X (mm): 55 ●Mounting pitch Y (mm): 28 ●Mounting hole diameter P (mm): 8.8 ●Wheel type: 426G-C ●Plate type Material/Finish: ●Body: Steel ●Surface treatment: Trivalent chromate chemical treatment ●Wheel: Cast iron
