Hammer Low-floor medium-load swivel nylon wheel (roller bearing) 50 mm 550P-NRB50 1 piece

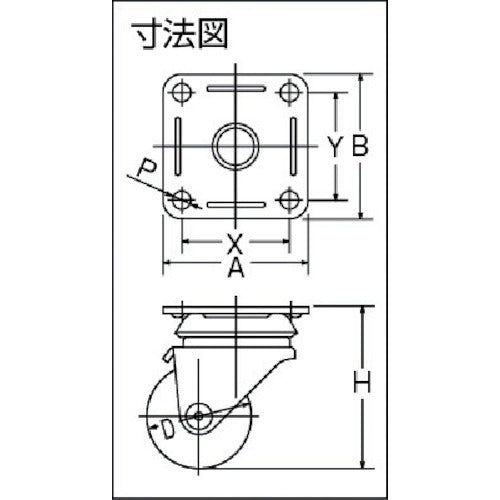

Catalogue number: 550P-NRB50 Features: ●The ball race diameter of the rotating part is large, and the double wheel allows for smooth rotation due to the mutual reversal action, and the use of flat wheels provides excellent running stability. Applications: ●For equipment that requires a low floor and heavy loads. Specifications: ●Wheel diameter D (mm): 50 ●Type: Free-wheeling ●Allowable load (daN): 150 ●Allowable load (kgf): 153 ●Wheel width (mm): 21 ●Mounting height H (mm): 77 ●Mounting seat A (mm): 70 ●Mounting seat B (mm): 70 ●Mounting pitch X (mm): 52 ●Mounting pitch Y (mm): 52 ●Mounting hole diameter P (mm): 8.8 ●Plate type ●Low floor type ●Free-wheeling ●Bearing included Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Black trivalent chromium chemical conversion treatment ●Wheels: Nylon
