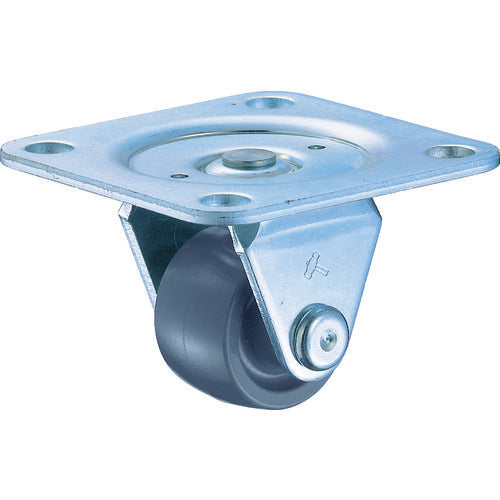

Hammer Low-floor fixed type reinforced nylon wheels 32mm 420TPR-N32 1 piece

Catalogue number: 420TPR-N32 Features: ● A low-floor caster with a low mounting height that meets the requirements for heavy loads. ● Used for heavy items such as freezer showcases that have height restrictions. Applications: ● For items that require an extremely low floor. Specifications: ● Wheel diameter D (mm): 32 ● Type: Fixed ● Allowable load (daN): 120 ● Allowable load (kgf): 122.4 ● Wheel width (mm): 21 ● Mounting height H (mm): 46.5 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 70 ● Mounting pitch X (mm): 52 ● Mounting pitch Y (mm): 52 ● Mounting hole diameter P (mm): 8.8 ● Plate type ● Low-floor type ● Fixed type Materials/Finish: ● Metal fittings: Steel ● Metal fittings: Trivalent chromium conversion coating ● Wheels: Reinforced nylon
