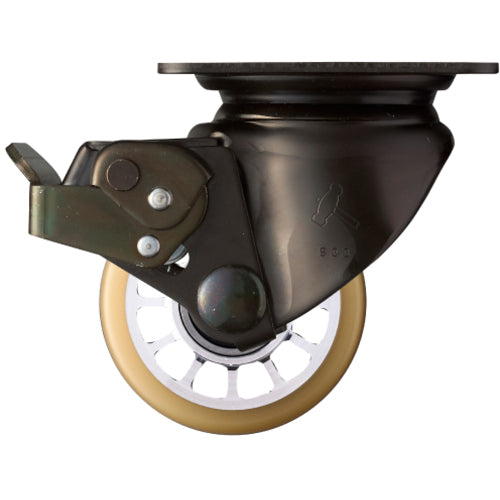

Hammer Low-floor plate caster Low-floor plate caster Swivel (with stopper) Wheel diameter 75mm Urethane wheel 5451S-BAU75 1 piece

Catalog number: 5451S-BAU75 Features: ●Low-floor heavy-duty caster with the same mounting dimensions as the 420S-100mm. ●Usage example: Ideal for transporting large machinery and heavy objects that require stability. ●Compact design with low mounting height, excellent durability against heavy loads (allowable load 300 daN), and smooth wheel rotation. Specifications: ● Wheel diameter D (mm): 75 ● Type: swivel type (with stopper) ● Allowable load (daN): 300 ● Wheel width (mm): 40 ● Mounting height H (mm): 100 ● Mounting seat A (mm): 90 ● Mounting seat B (mm): 90 ● Mounting pitch X (mm): 68 (71) ● Mounting pitch Y (mm): 68 (71) ● Mounting hole diameter P (mm): 11 ● V: 86 mm ● K: 19 mm ● Eccentricity (E): 23 mm ● Turning radius: 88 mm ● Wheel type: 542S-BAU ● Plate type ● For low-floor and heavy loads ● Body: Black trivalent chromium chemical treatment Materials/Finish: ● Body: Steel ● Surface treatment: Black trivalent chromium chemical treatment ● Wheels: Urethane
