Hammer, low-floor type, heavy load, fixed, phenol B wheel, 75 mm, 560SR-PB75, 1 piece

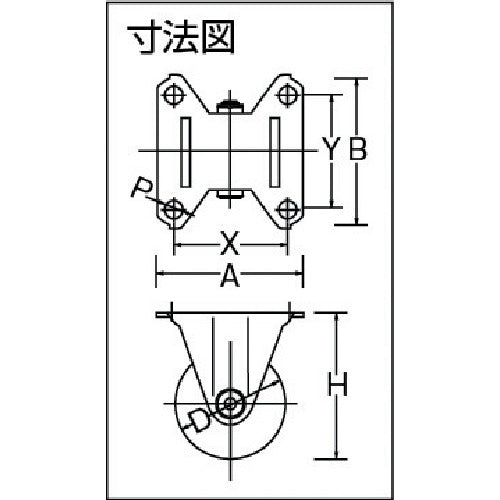

Catalogue number: 560SR-PB75 Features: ●The rotating part is hardened and roller bearings are used for the axle, so it has high load resistance and the wheels rotate smoothly. Applications: ●For equipment that requires a low floor and heavy loads. Specifications: ●Wheel diameter D (mm): 75 ●Type: Fixed type ●Allowable load (daN): 600 ●Allowable load (kgf): 612 ●Wheel width (mm): 45 ●Mounting height H (mm): 105 ●Mounting seat A (mm): 100 ●Mounting seat B (mm): 106 ●Mounting pitch X (mm): 78 ●Mounting pitch Y (mm): 78 ●Mounting hole diameter P (mm): 11 ●Fixed type ●Plate type ●Low floor type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Black trivalent chromium chemical conversion treatment ●Wheels: Phenolic resin
