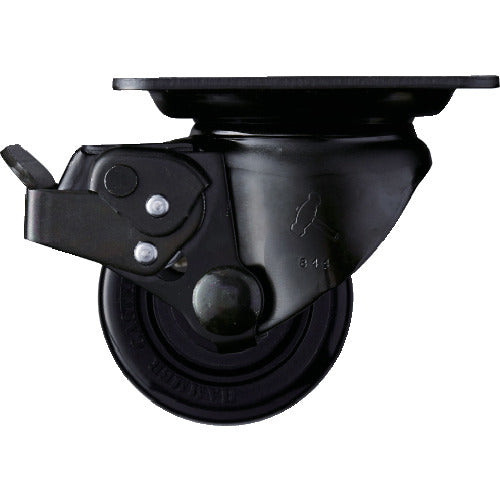

Hammer, low-floor, heavy-duty, swivel-type nylon wheels (ball bearings), 65 mm, SP included, body: black, 545H-NRB65, 1 pc

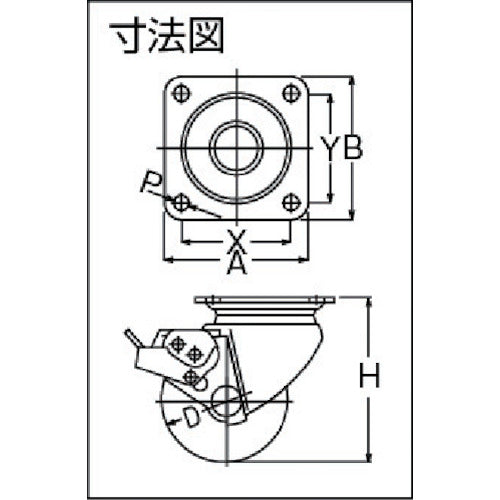

Catalog number: 545H-NRB65 Features: ●The nylon wheels are made of a special nylon, so even if they are fixed under heavy load for a long time, they will not warp due to the load. Applications: ●For equipment that requires a low floor and heavy loads. Specifications: ●Wheel diameter D (mm): 65 ●Type: Free-wheeling (with stopper) ●Allowable load (daN): 400 ●Allowable load (kgf): 408 ●Wheel width (mm): 40 ●Mounting height H (mm): 90 ●Mounting seat A (mm): 100 ●Mounting seat B (mm): 100 ●Mounting pitch X (mm): 78 ●Mounting pitch Y (mm): 78 ●Mounting hole diameter P (mm): 11 ●Allowable load (N): 4000 ●Plate type ●Low-floor type ●Free-wheeling (with stopper) Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Black trivalent chromium chemical conversion treatment ●Wheels: Nylon
