Hammer Semi-threaded Swivel Rubber Wheel 32mm UNF3/8 420A-R32 1 pc

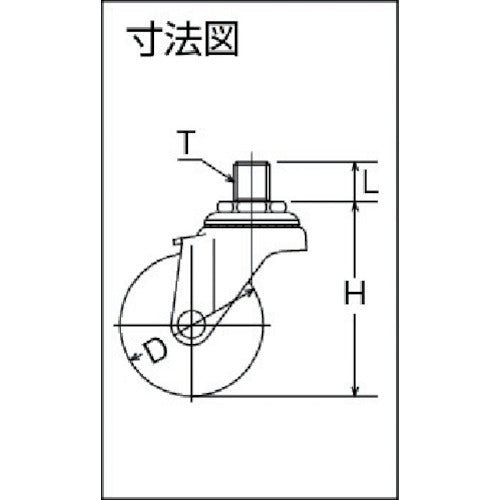

Catalog number: 420A-R32 Features: ● Widely used in environments where design and lightness are required. ● RoHS compliant. ● Uses unified and metric screws that are often used in office furniture such as chairs. Applications: ● Screw-in type that can be installed with a single wrench. Specifications: ● Wheel diameter D (mm): 32 ● Type: Free-wheeling ● Allowable load (daN): 15 ● Allowable load (kgf): 15.3 ● Wheel width (mm): 14 ● Mounting height H (mm): 47 ● Shaft length L (mm): 14 ● Thread T: UNF3/8 ● Threads: 24 threads ● Allowable load (N): 150 ● Screw-in type ● Free-wheeling ● Spanner size: 12 x 14 (UNF3/8, W3/8, W5/16), 19 x 21 (UNF1/2, M12) ● Unified thread type Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Chrome plated finish (wheel diameter 32 mm is trivalent chromium chemical treatment) ● Wheels: Rubber
