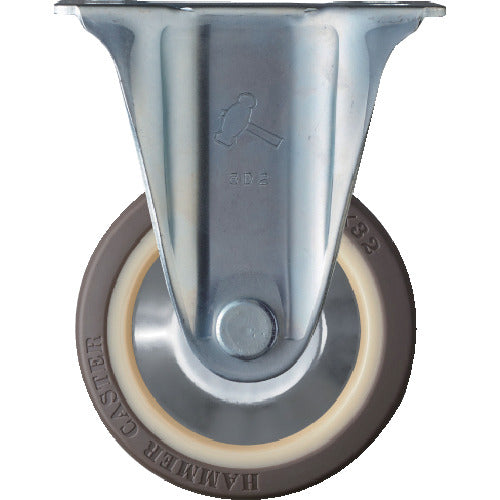

Hammer Fixed urethane wheel (nylon wheel, radial ball bearing) 100 mm 400SR-UB100 1 piece

Catalogue number: 400SR-UB100 Features: ●A high-quality, fixed, large caster that can be used in conjunction with the swivel type 400S/419S. Applications: ●For transporting heavy objects. Specifications: ●Wheel diameter D (mm): 100 ●Type: Fixed type ●Allowable load (daN): 100 ●Allowable load (kgf): 102 ●Wheel width (mm): 32 ●Mounting height H (mm): 140 ●Mounting seat A (mm): 110 ●Mounting seat B (mm): 78 ●Mounting pitch X (mm): 80 ●Mounting pitch Y (mm): 45 ●Mounting hole diameter P (mm): 11 ●Plate type ●Wheel fixing method: Nut Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium conversion treatment ●Wheels: Urethane (thermoplastic)
