Hammer Fixed urethane wheel (nylon wheel) 38mm 420R-UR38 1 piece

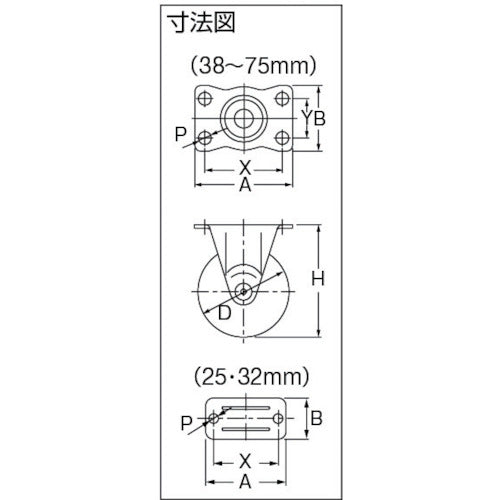

Catalogue number: 420R-UR38 Features: ●The most widely produced and used in a variety of locations. ●Complies with RoHS. Applications: ●An all-purpose lightweight type that can be used both indoors and outdoors. Specifications: ●Wheel diameter D (mm): 38 ●Type: Fixed type ●Allowable load (daN): 28 ●Allowable load (kgf): 28.56 ●Wheel width (mm): 16 ●Mounting height H (mm): 50 ●Mounting seat A (mm): 46 ●Mounting seat B (mm): 25 ●Mounting pitch X (mm): 36 ●Mounting pitch Y (mm): 15 ●Mounting hole diameter P (mm): 5.3 ●Allowable load (N): 280 ●Plate type ●Fixed type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium plating finish ●Wheels: Nylon wheel, thermoplastic urethane
