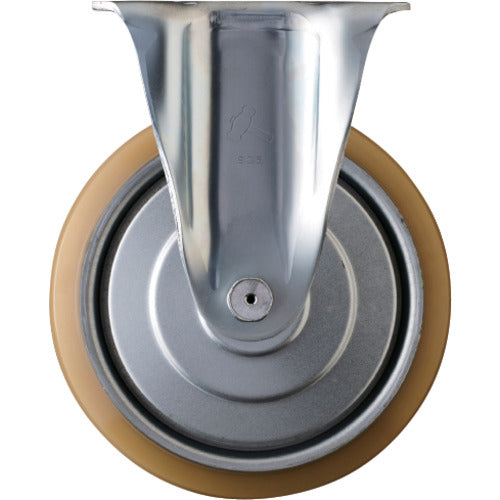

Hammer Fixed urethane wheel (roller bearing) 200mm 400SR-URB200 1 piece

Catalog number: 400SR-URB200 Features: ●High-quality fixed caster that can be used in conjunction with swivel caster 400S/419S. ●Widely used for moving machinery and transporting heavy objects. Uses: ● For transporting heavy objects Specifications: ● Wheel diameter D (mm): 200 ● Type: Fixed type ● Allowable load (daN): 200 ● Allowable load (kgf): 204 ● Wheel width (mm): 46 ● Mounting height H (mm): 240 ● Mounting seat A (mm): 150 ● Mounting seat B (mm): 105 ● Mounting pitch X (mm): 112-119 ● Mounting pitch Y (mm): 63-56 ● Mounting hole diameter P (mm): 13 ● Mounting dimensions (mm): 112 x 63 (119 x 56) ● Plate type ● Wheel fixing method: Nut Material/Finish: ● Body: Steel ● Surface treatment: Trivalent chromate chemical treatment ● Wheel: Urethane (thermosetting)
