Hammer Fixed Elastomer Wheel (PP Wheel) 50mm 420ER-L50 1pc

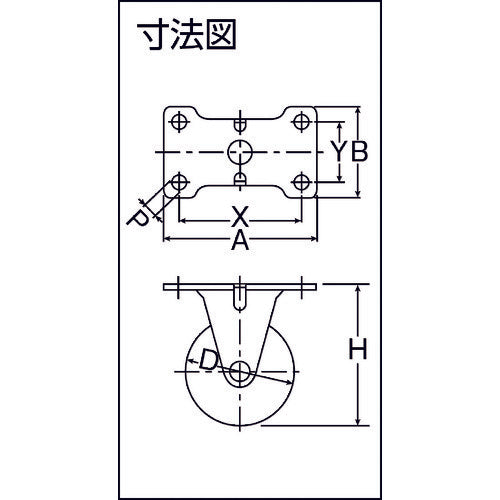

Catalogue number: 420ER-L50 Features: ●A cost-effective model that uses elastomer material to solve the marking problem. ●Achieves soft and quiet running performance not found in hard wheels. ●RoHS compliant. Specifications: ●Wheel diameter D (mm): 50 ●Type: Fixed type ●Allowable load (daN): 30 ●Allowable load (kgf): 30.6 ●Wheel width (mm): 21 ●Mounting height H (mm): 65 ●Mounting seat A (mm): 70 ●Mounting seat B (mm): 42 ●Mounting pitch X (mm): 56 ●Mounting pitch Y (mm): 28 ●Mounting hole diameter P (mm): 6.5 ●Mounting height (mm): 65 ●Mounting seat (mm): 70 x 42 ●Mounting dimensions (mm): 56 x 28 ●Mounting hole diameter (mm): 6.5 ●Plate type ●Plate type Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Chrome plating finish ●Wheels: Elastomer
