Hammer Fixed Rubber Wheel 125mm 420ER-R125 1pc

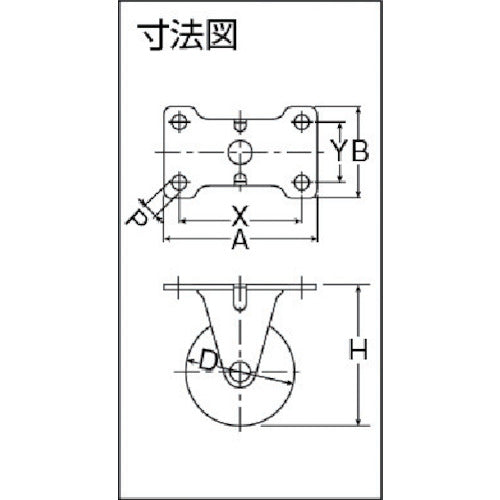

Catalogue number: 420ER-R125 Features: ● Widely used in environments that demand design and lightness. ● RoHS compliant. Applications: ● All-purpose lightweight type for both indoor and outdoor use. Specifications: ● Wheel diameter D (mm): 125 ● Type: Fixed type ● Allowable load (daN): 60 ● Allowable load (kgf): 61.2 ● Wheel width (mm): 27 ● Mounting height H (mm): 148 ● Mounting seat A (mm): 100 ● Mounting seat B (mm): 58 ● Mounting pitch X (mm): 82 ● Mounting pitch Y (mm): 40 ● Mounting hole diameter P (mm): 8.8 ● Allowable load (N): 600 ● Plate type ● Fixed type Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Chrome plated finish ● Wheels: Rubber
