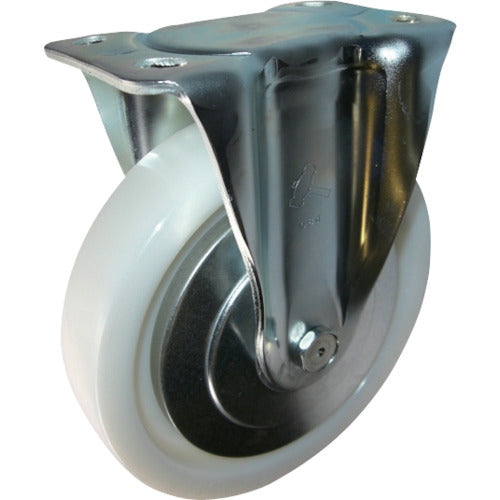

Hammer Fixed Nylon Wheel (Radial Ball Bearing) 200mm 400SR-NRB200 1 pc

Catalogue number: 400SR-NRB200 Features: ●A high-quality, large, fixed caster that can be used with the swivel type 400S/419S. ●Widely used for moving machinery and transporting heavy objects. Applications: ●For transporting heavy objects Specifications: ●Wheel diameter D (mm): 200 ●Type: Fixed type ●Allowable load (daN): 220 ●Wheel width (mm): 44 ●Mounting height H (mm): 240 ●Mounting seat A (mm): 150 ●Mounting seat B (mm): 105 ●Mounting pitch X (mm): 112-119 ●Mounting pitch Y (mm): 63-56 ●Mounting hole diameter P (mm): 13 ●Mounting seat (mm): 150 x 105 ●Plate type ●Wheel fixing method: Nut Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium conversion treatment ●Wheels: Nylon wheel rubber
