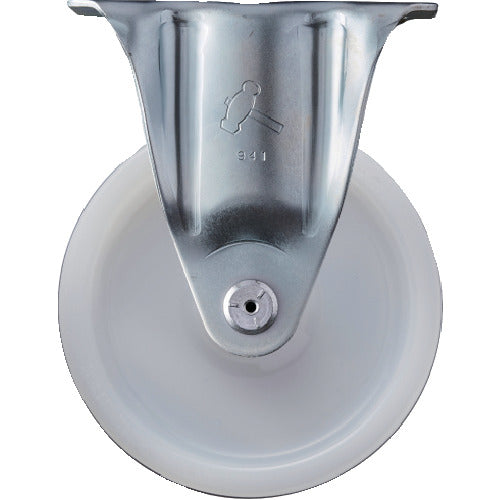

Hammer Fixed Nylon Wheel 150mm 420SR-N150 1 pc

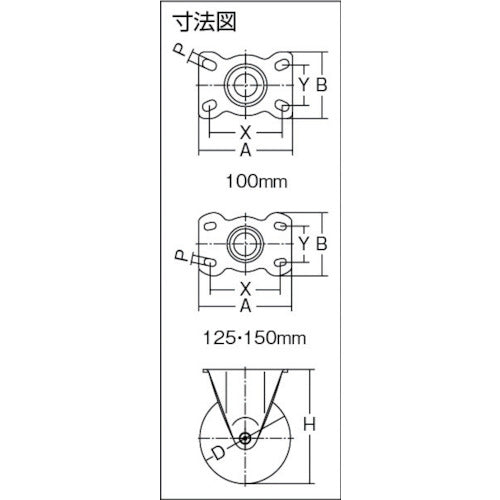

Catalog number: 420SR-N150 Features: ●High resistance to loads and smooth rotation. ●Casters made by pressing extremely thick materials to withstand heavy loads. ●Casters over 100 mm are robust and stable, making them ideal for transporting heavy objects. Applications: ●All-purpose caster for medium to heavy loads. Specifications: ●Wheel diameter D (mm): 150 ●Type: Fixed type ●Allowable load (daN): 160 ●Allowable load (kgf): 163.2 ●Wheel width (mm): 35 ●Mounting height H (mm): 190 ●Mounting seat A (mm): 140 ●Mounting seat B (mm): 94 ●Mounting pitch X (mm): 100-112 ●Mounting pitch Y (mm): 56-53 ●Mounting hole diameter P (mm): 11.0 ●Plate type ●Fixed type Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium conversion treatment ●Wheels: Nylon
